सीई छोटे डीजल जनरेटर 3 चरण 6.5kw डीजल जनरेटर सेट 8600E3 घर के लिए
उत्पाद विवरण:
| Place of Origin: | CHINA |
| ब्रांड नाम: | KAIAO |
| प्रमाणन: | CE |
| Model Number: | KDE8600E3 |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 5 |
|---|---|
| Delivery Time: | 12 work days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 3000PCS PER MONTH |
|
विस्तार जानकारी |
|||
| शक्ति: | 6 किलोवाट 6.5 किलोवाट | पोर्टेबल: | पहियों के साथ |
|---|---|---|---|
| बैटरी: | 36 आह | ||
| प्रमुखता देना: | होम 8600E3 लघु डीजल जनरेटर,6.5kw डीजल जनरेटर सेट,सीई छोटे डीजल जनरेटर 3 चरण |
||
उत्पाद विवरण

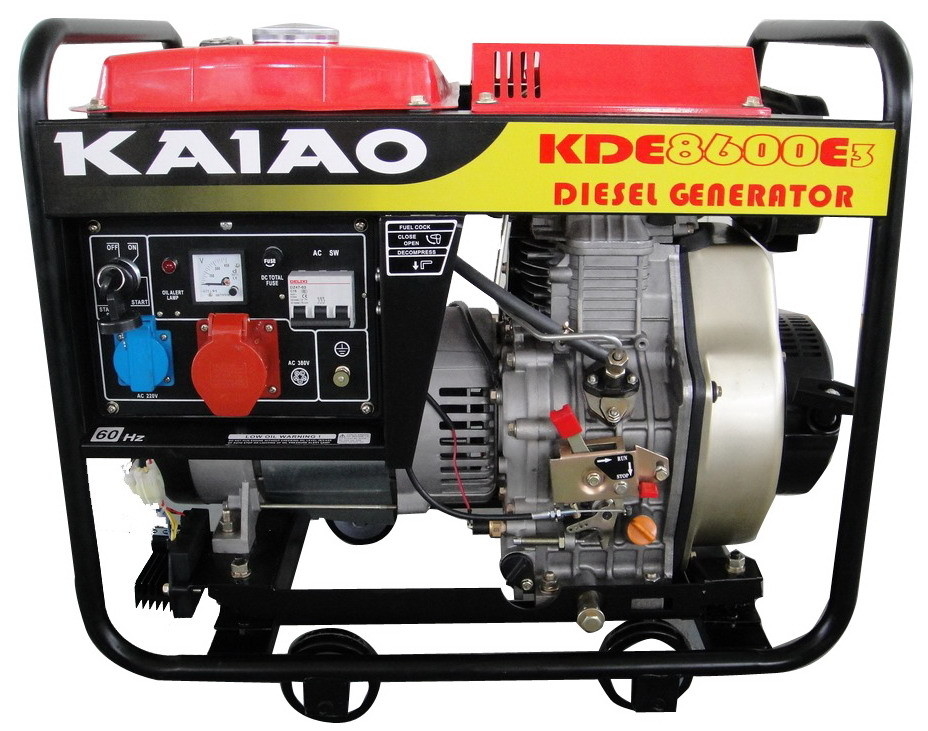

KAIAO EXCELLENT DIESEL GENERATOR
Engine starting system Type X: Recoil starter Type E: Electric starter
| Diesel generator KDE8600E3 | ||
| Model | KDE8600E3 | |
| Frequency (Hz) | 50 | 60 |
| Output power (KVA) | 7.5 | 8 |
| Max. Power(KVA) | 8 | 8.5 |
| Voltage (V) | 230/400 | 240/416 |
| Current (A) | 10.8 | 11.1 |
| Engine speed (r/min) | 3000 | 3600 |
| Phase | Three | |
| Power factor(cosφ) | 0.8 | |
| Excitation system | Self-excited constant voltage | |
| Noise level (7m) | DB (A): 77 | |
| Fuel tank capacity (L) | 12.5 | |
| Structure | Open-frame | |
| Panel | Ordinary | |
| Outputsocket | Two | |
| DC12V output | Terminal post | |
| Engine Model | KA188FE | |
| Bore*stroke (mm) | 88 *75 | |
| Displacement (L) | 0.45 | |
| Power (KW) | 7.7/3000 | 8.3/3600 |
| Fuel consumption rate (g. KW/h) | 290 | 295 |
| Compression ratio | 19 | |
| Lubrication system | Spring | |
| Engine starting system | Electric starter | |
| Diesel oil model | Summer: 0#, winter: -10# | |
| Lube oil model | SAE10W-30 (above CD grade) | |
| Lube oil capacity (L) | 1.65 | |
| Battery capacity(V-AH) | 12V-36Ah | |
| Net weight(KG) | 105 | |
| Dimension(L*W*H) | 760×515×710 | |
